Page #26 |
INSTALLATION MANUAL |
STEP 8: PAGE 1 OF 2 |
SIDEWALL INSTALLATION USING TRANSOMS

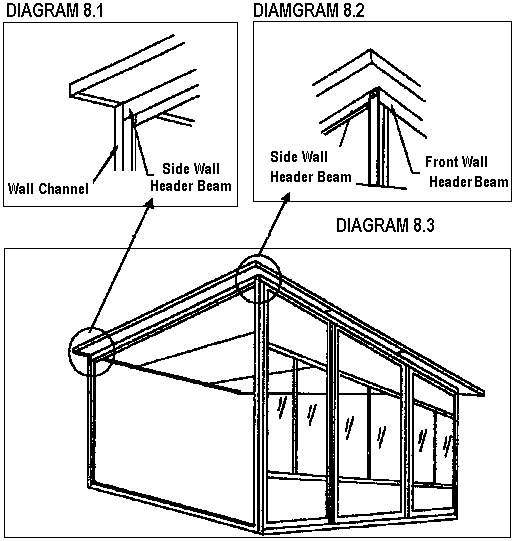

DIAGRAM 8.3
After the structural roof has been installed and secured to the front wall,the side wall header is ready to be attached to the bottom of the roof panel above the side wall bottom track. Cut the wall channel(the wall channel may need to be slit ) between the inside dimension of the bottom track and the roof panel at the house wall. This will give you a piece of material that will enable you to mark the under side of the roof plumb with the bottom track below. Using the Top Channel as a header secure to roof starting at your mark, Diagram 8.1 and intersecting with front wall Header. Diagram 6.2 Secure with # 8 x 3/4" Tek Screws every 16".
